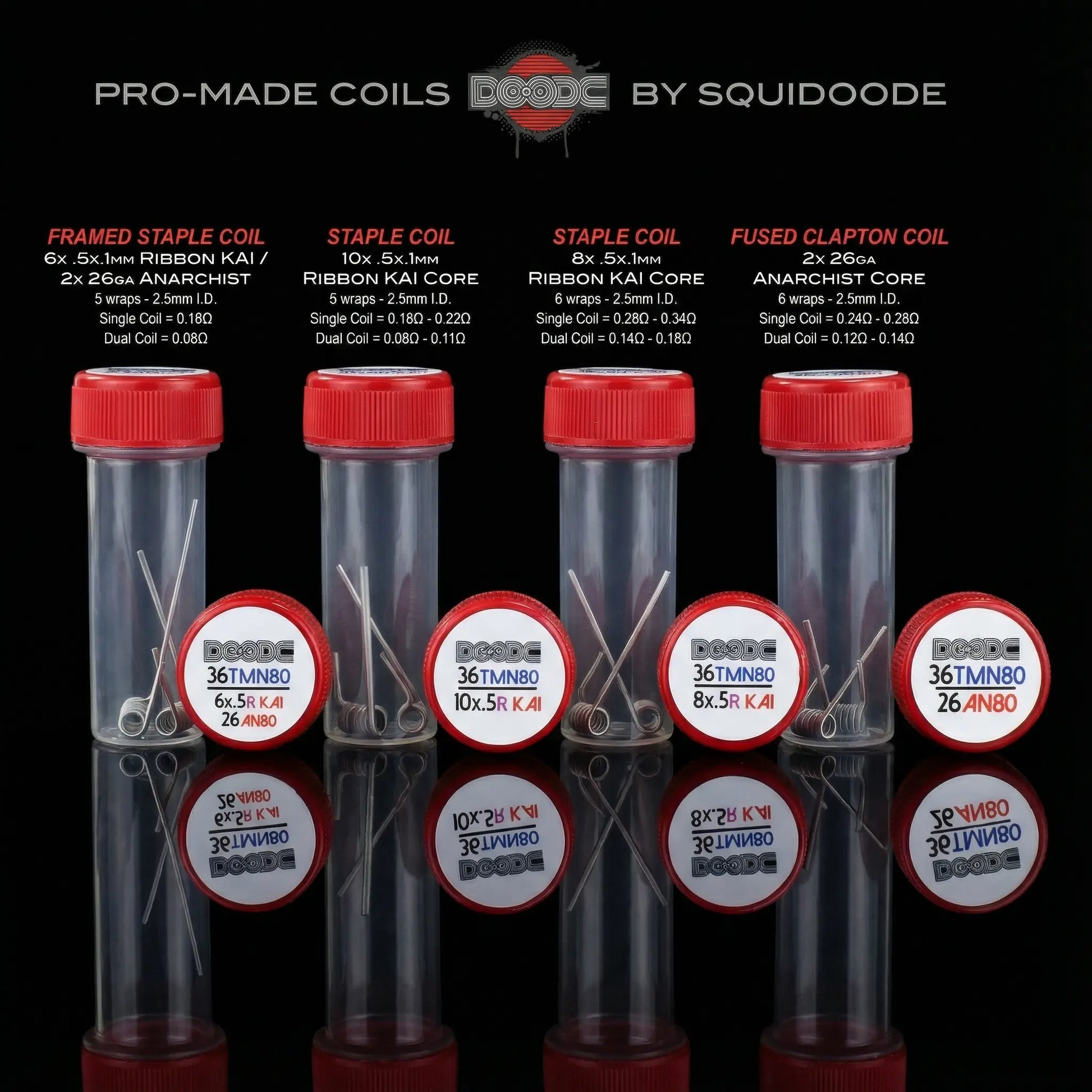

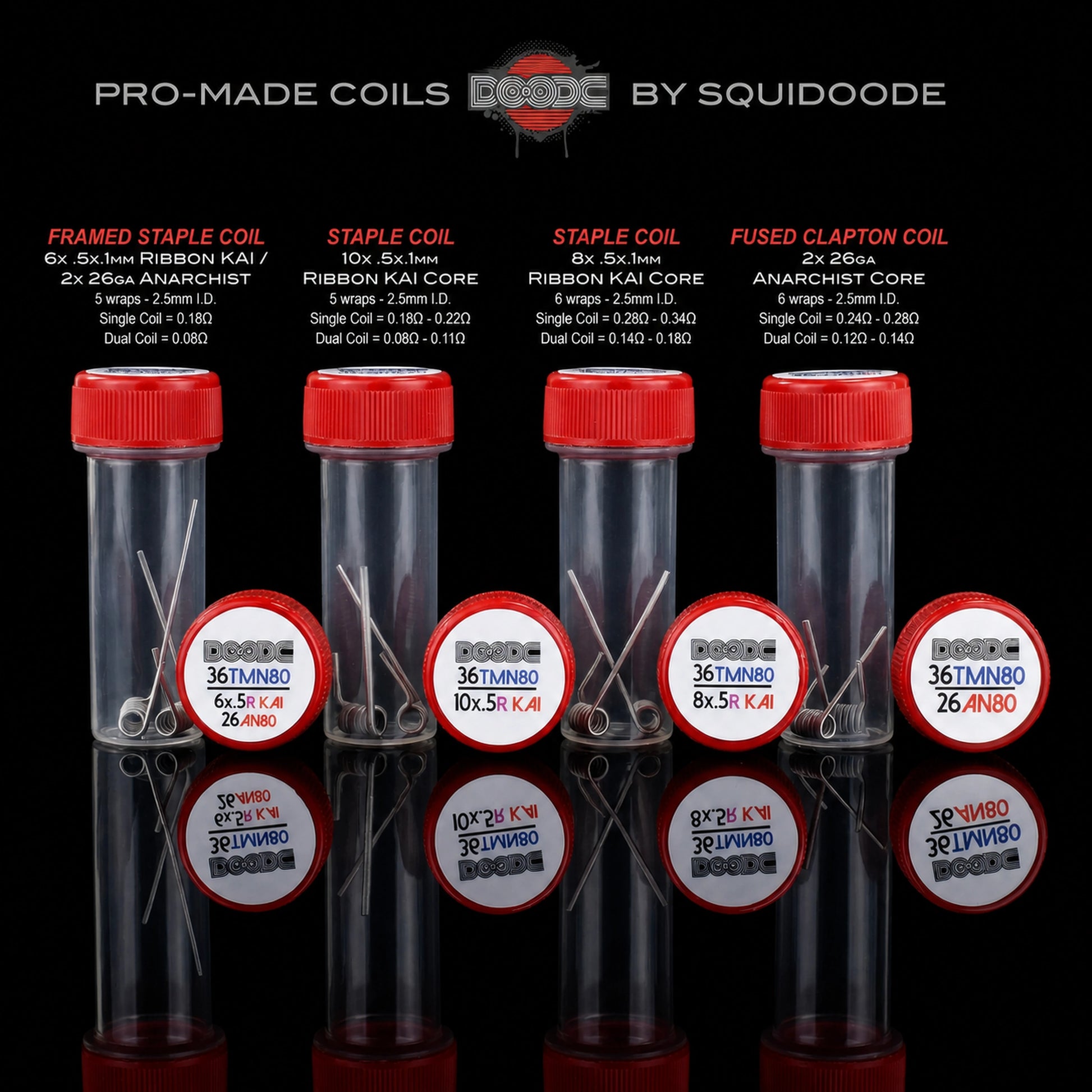

Squidoode Coils

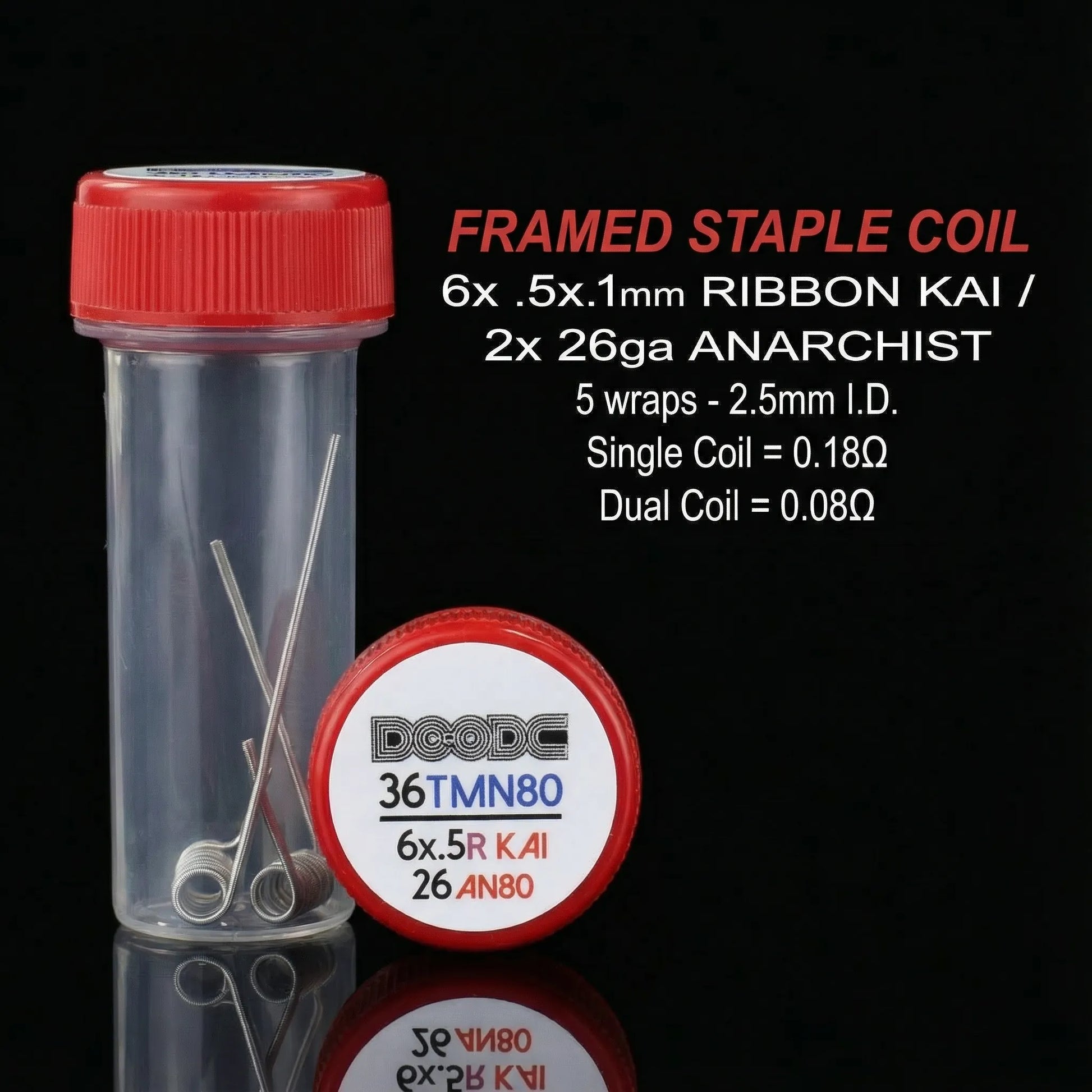

Framed Staple

Specs:

• Core: Six (6) pieces of vertically stacked .5mm K-A1 Ribbon from Kidney Puncher. Two (2) pieces of 26ga Anarchist Competition Wire (on the outer frames).
• Clapton: 36ga Twistedmesses Nichrome80
• 5 Wraps – 2.5mm I.D.
• Single Coil = 0.16 – 0.20
• Dual Coil = 0.08 – 0.10

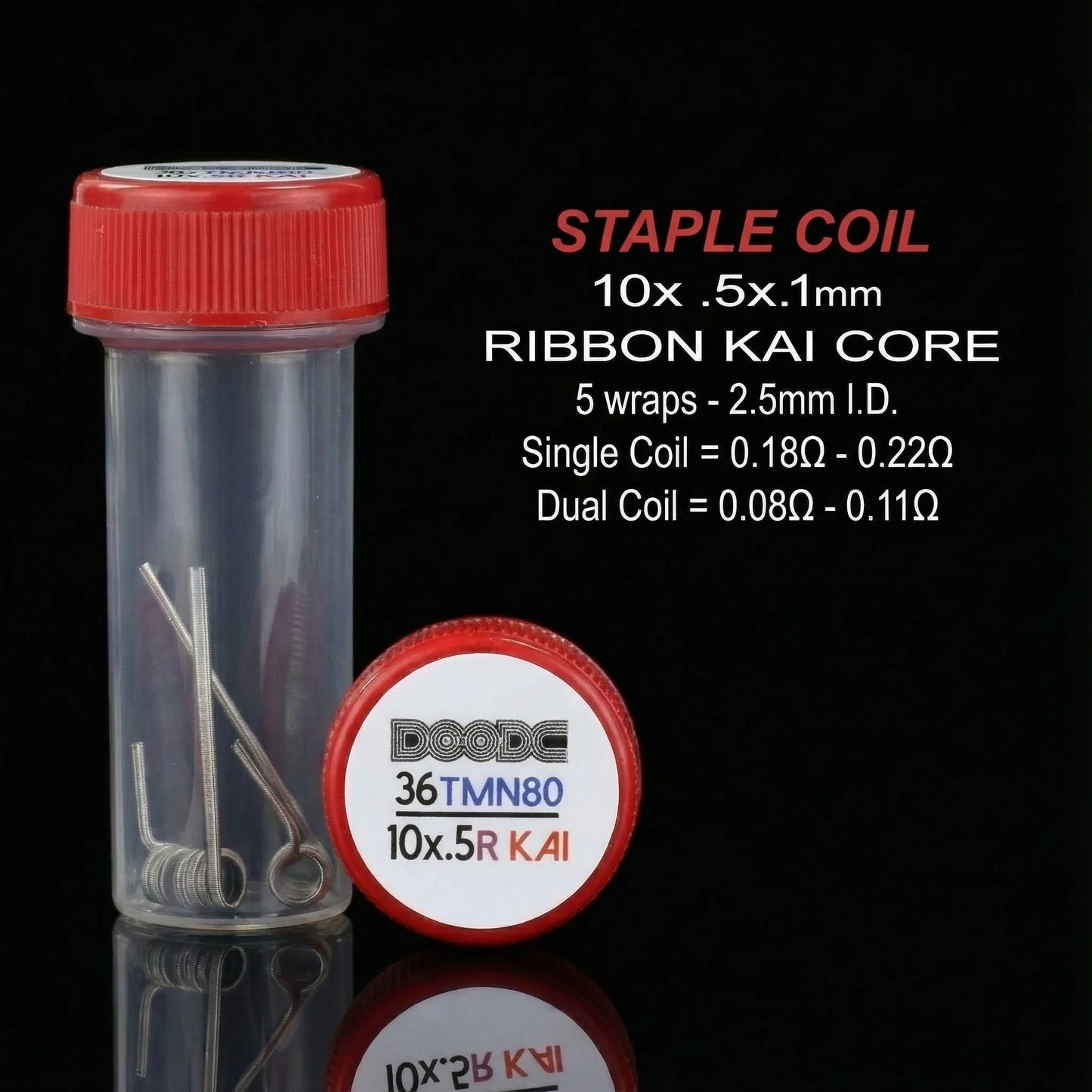

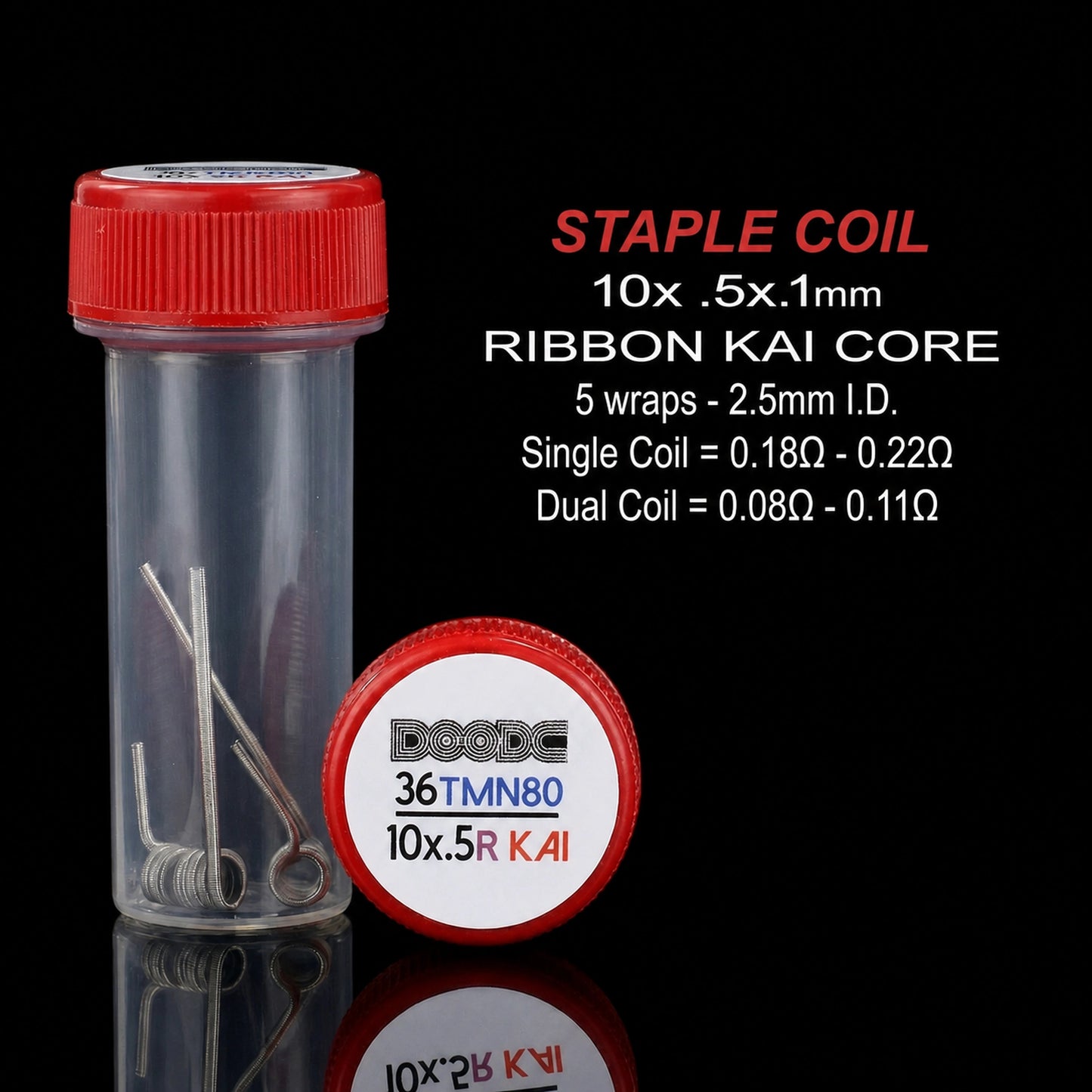

Staple 10 Ply

Specs:

• Core: Ten (10) pieces of vertically stacked .5mm K-A1 Ribbon from Kidney Puncher
• Clapton: 36ga Twistedmesses Nichrome80
• 5 wraps – 2.5mm I.D.
• Single Coil = 0.16 – 0.22
• Dual Coil = 0.08 – 0.11

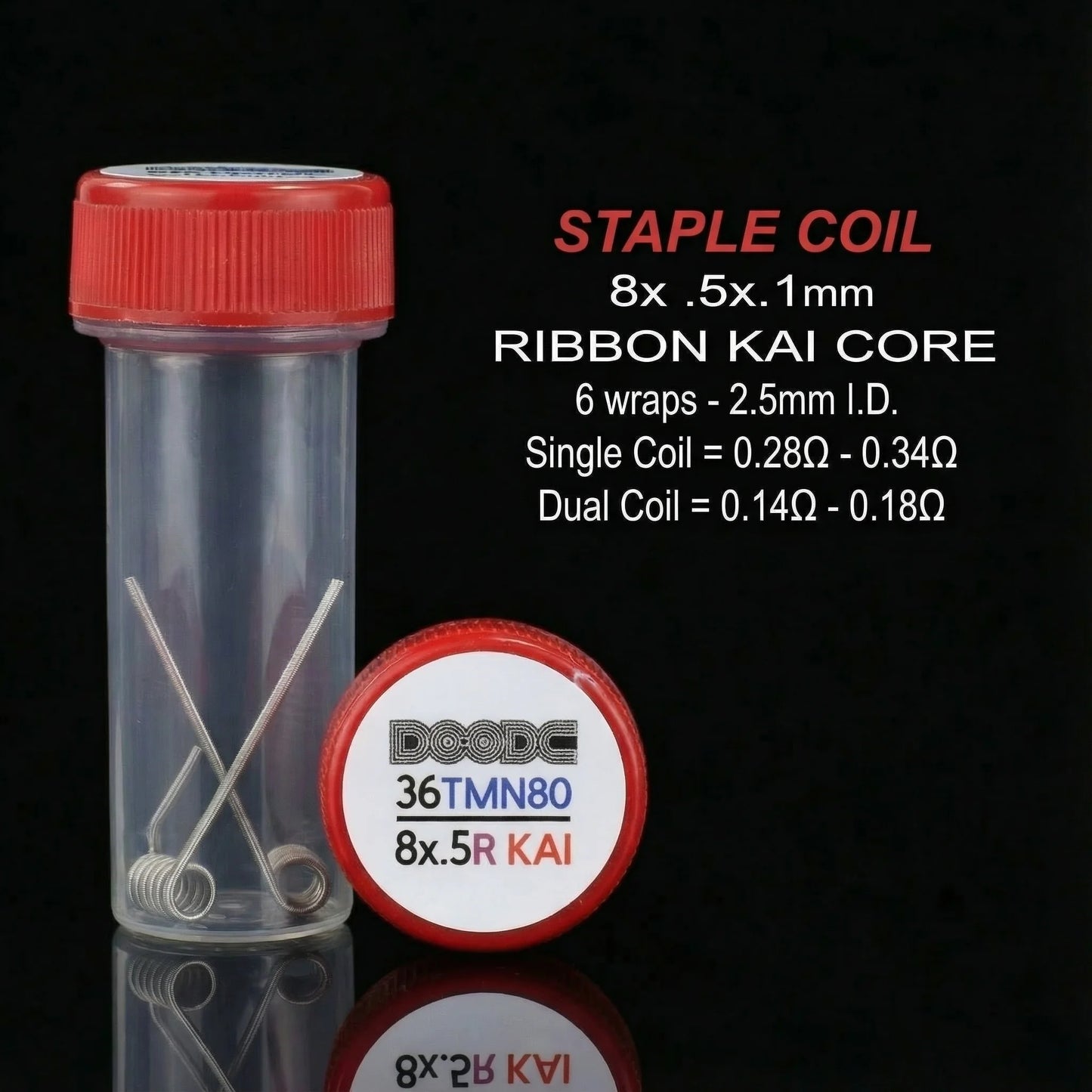

Staple Coil 8 Ply

Specs:

• Core: Eight (8) pieces of vertically stacked .5mm K-A1 Ribbon from Kidney Puncher
• Clapton: 36ga Twistedmesses Nichrome80
• 6 wraps – 2.5mm I.D.
• Single Coil = 0.28 – 0.34
• Dual Coil = 0.14 – 0.17

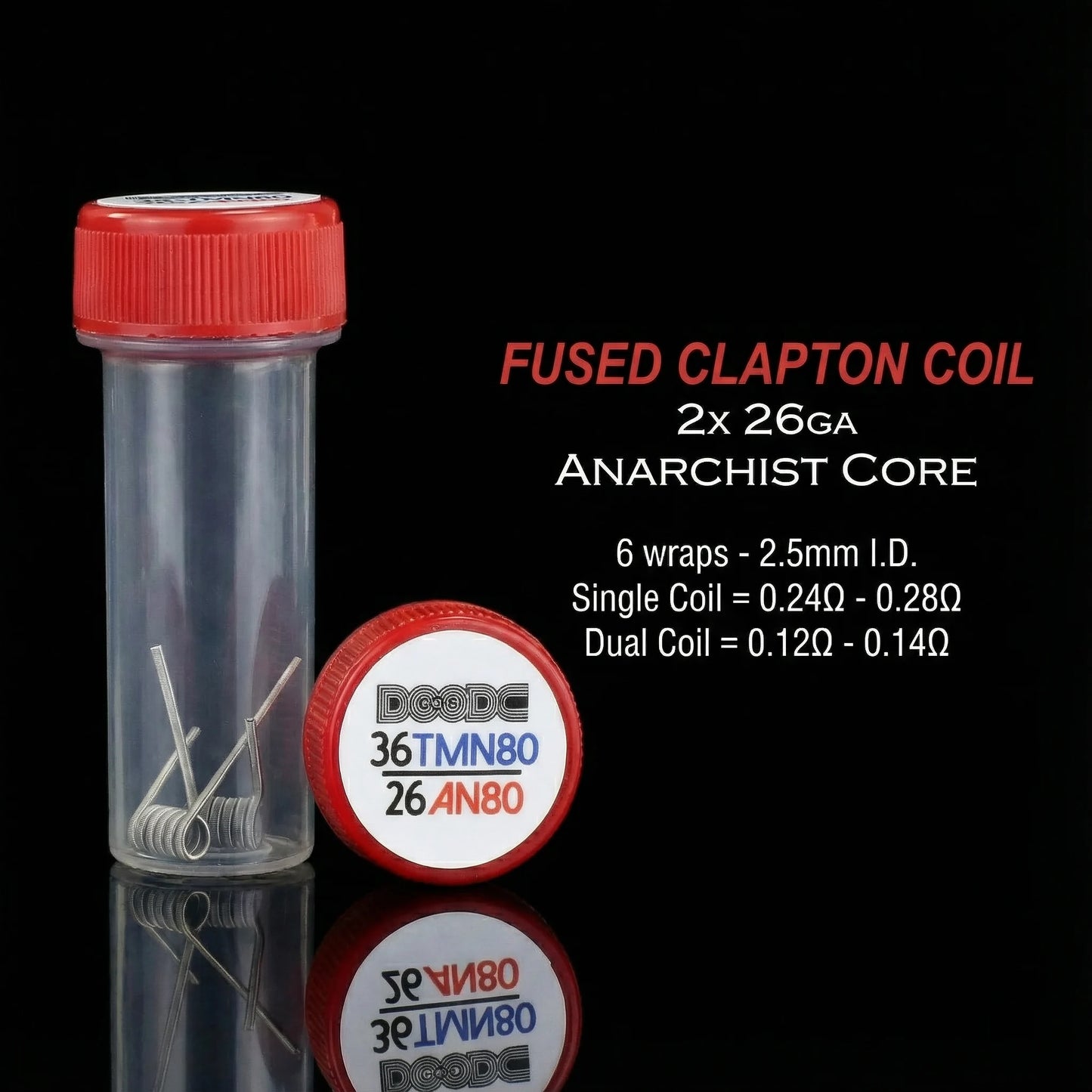

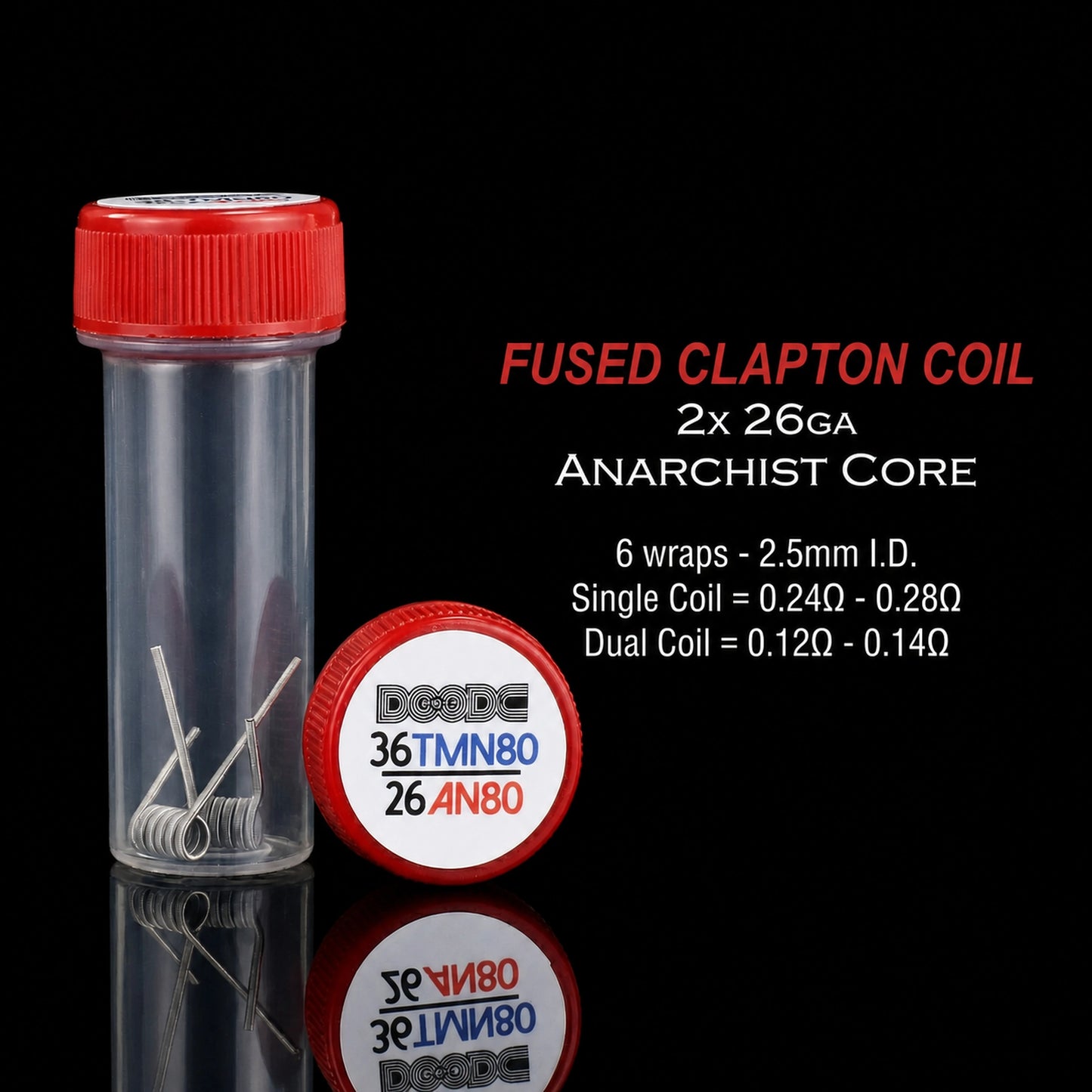

Fused Clapton

Specs:

• 36ga Twistedmesses Nichrome80 over 26ga Anarchist Wire
• 6 wraps – 2.5mm I.D.
• Single Coil = 0.22 – 0.26
• Dual Coil = 0.11 – 0.13
